Trommel Screen-Fote Machinery

Brief Introduction

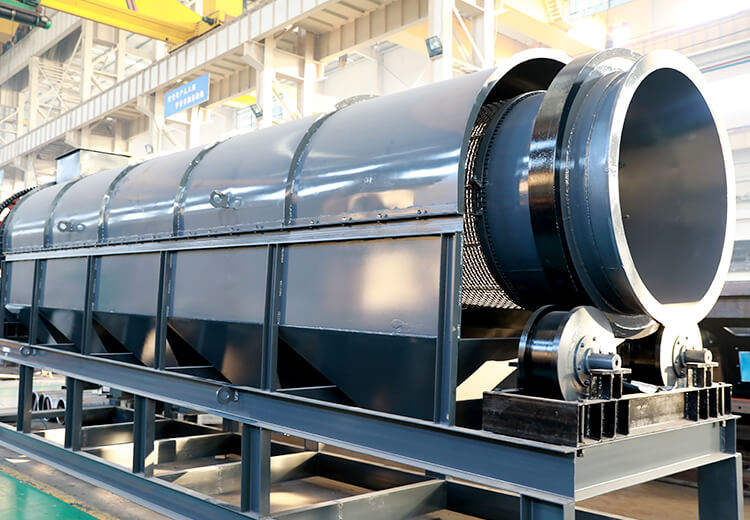

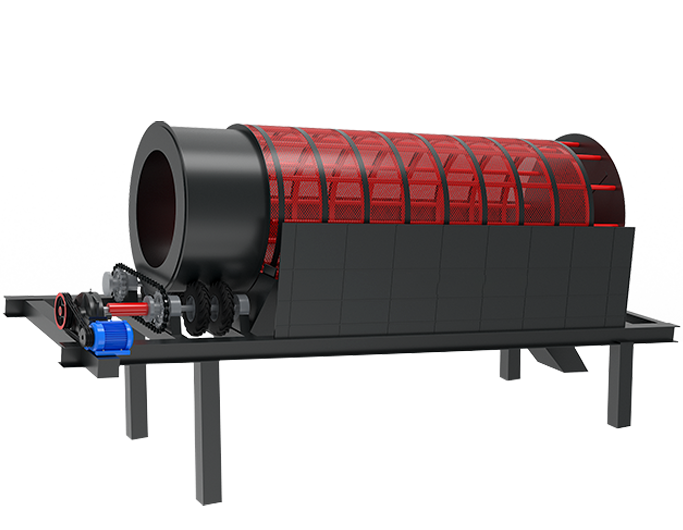

A trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries, and also be used for separation and screening of sand and stone in the sandstone field It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.

The screening effect is good. The 60-200 mesh screen has a wide range of applications, low working environment requirements, and can be customized to meet different production needs.

Working Principle

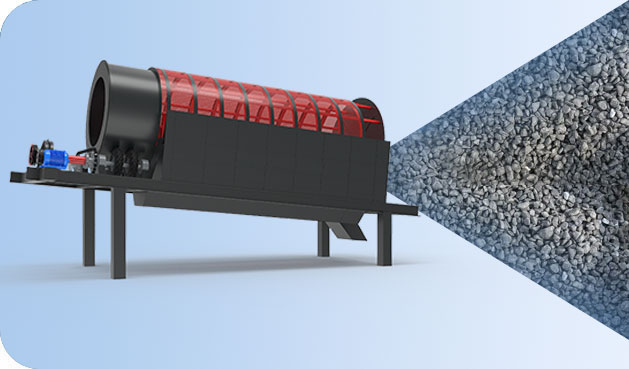

When the material enters the trommel screen, because of drum inclining and rolling, it make the material on the surface of the screen constantly turning and rolling. Smaller than screen hole size of materials will be discharged at the bottom of the discharging mouth, while the greater size materials than the screen hole will be discharged at the end of the discharging mouth. The equipment adopts a parallel sieve to form the sieve, and the size of the gap is the size of the required material size. When the drum is rotated, gravity of the material will help screening. The shaft is higher than the screen, and the bulk material can be moved when rotating, thus improving the screening efficiency. The material is accelerated by inclined slope, and finally enters into the next process.

Learn More

Advantages

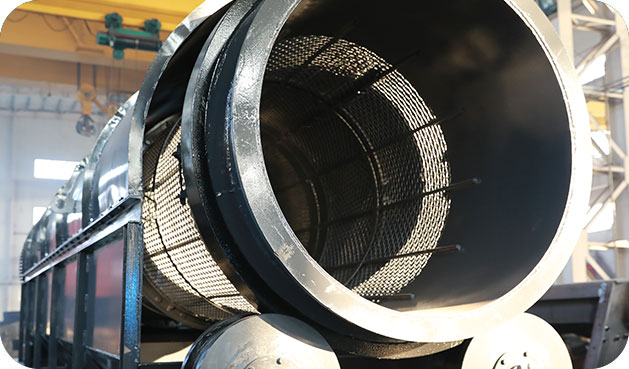

The special screen of the FTM trommel screen is not easy to block, and the screening efficiency is high, which is more than 1.5 times higher than the previous equipment.
01
The trommel screen adopts a full sealing device, and the screening cylinder can be closed, which is easy to close and collect dust.
02
The trommel screen is automatically controlled and has a high automatic program.
03
The unique design effectively reduces vibration, making the machine run more smoothly and take up less space, and easy to process.
04

Cases and Price

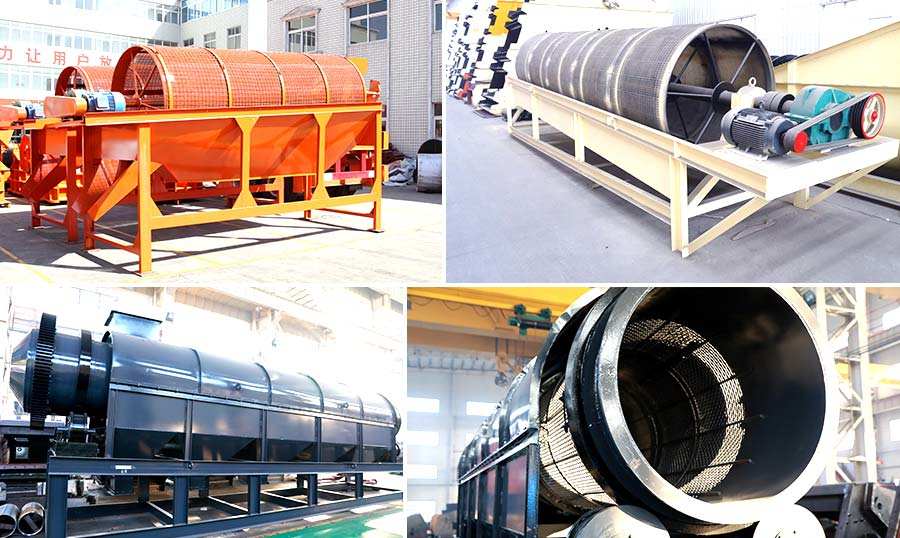

Our Trommel Screen has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.Get Quote

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

Model	Capacity (t/h)		Power (kw)
Model	Sieve hole(2mm)	Sieve hole(30mm)	Power (kw)
YTS1230	4-12	16-50	5.5
YTS1240	4.5-14	20-60	5.5
YTS1250	5-15	23-70	5.5
YTS1530	6-18	25-75	5.5
YTS1540	6-18	25-75	7.5
YTS1550	7-20	26-80	11
YTS1560	7-22	33-100	11
YTS2040	8-25	40-120	11
YTS2050	10-30	50-150	11
YTS2060	12-35	55-175	11

Why Choose FTM

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.

Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.

If you have any doubts about products, Please contact us, we will reply to you within 24 hours/provide you with the latest quotes.
