The wet pan mill can be especially used in the grinding work of various vein gold mines, rock gold mines, placer gold mines, and associated gold mines. sales@sinoftm.com

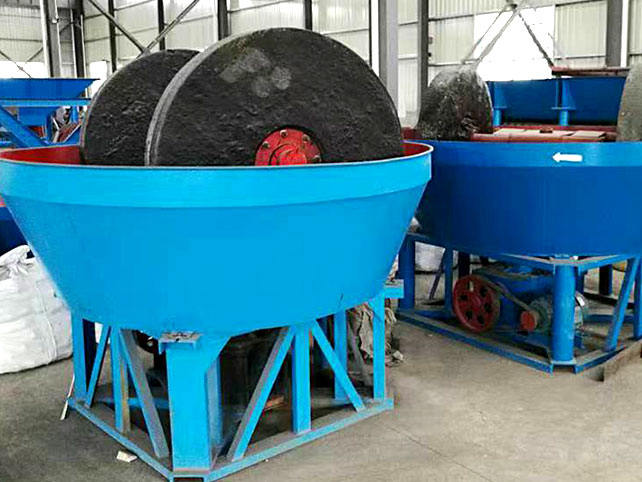

Wet Pan Mill

10-45t/d
Capacity
<30mm
Feeding size

Applied Materials

gold ore
copper ore
iron Ore
molybdenum
quartz

Chat Online Now Get Price List

Introduction

The wet pan mill can be used for the grinding operations of gold, silver, copper, iron, molybdenum, quartz and other ores, especially in the grinding work of various vein gold mines, rock gold mines, placer gold mines, and associated gold mines. A wide range of minerals (natural gold, fractured gold, coated gold, fine-grained gold, fine-grained gold) can achieve good grinding indicators, providing favorable conditions for subsequent gold selection operations.

High grinding efficiency Large crushing ratio; the proportion of 80-200 mesh products can reach more than 95%.
Durable in use The machine is assembled with special casting parts and it has precision design which makes the machine to be durable.
Low investment Wet pan mill has simple structure and less wearing parts thus easy to do maintenance and request low investment.

Working Principle

The motor is driven by the V-belt to the gearbox, and then the gearbox drives the rollers, so that the rollers rotate in a clockwise direction. When the raw materials in the basin rotate with the rollers, they follow the rotation of the rollers, so as to achieve the purpose of uniform mixing. At the same time, raw materials are stirred-rolled-crushed-rolled repeatedly with the friction of rollers and the pan to achieve a certain degree of fineness and then discharged with water to achieve the purpose of beneficiation.

Wet pan mill is used for the recovery of tailings in the mineral ore process, without the loss of mineral powder, so that effective resources can be fully utilized. If you are interested it, please contact us online.

Chat Online Now

Product Commitments

1. We guarantee that our products are all up to standards set for mining machinery.
2. We will deliver products timely by contract.
3. We will supply you with installation drawings, specifications and operation manual.
4. We offer lifetime warranty and components for products.

Service Guarantee

Professional mining machinery manufacturer with over 40 years of experience.

Ⅰ
24/7 online service
Ⅱ
Free customized design
Ⅲ
Full tech support
Ⅳ
After-sale service

Chat Online Now

Wet Pan Mill Price

The favorable price to provide you with quality services

FTM provides 100% China factory price for wet pan mill and latest discount for online order.

As the advanced manufacturer and exporter in china, our wet pan mills are factory-direct sold, which offer you premium quality and better service.

Click Here to Get A Quote

About FTM

Company strength

Brand: FTM

Set up: 1982

Current Headcount: 2,300+

Covering area: 500,000m²

Factory area: 360,000m²
Product types

Crushing equipment

Beneficiation equipment

Building materials equipment

Grinding milling equipment
Business types

Manufacturer

Globe Supplier

Exporter
Hot markets

Africa

Southeast Asia

Middle East

South America

East Europe

Technical Data

Model	Roller dia. (mm)	Pan dia. (mm)	Suggest feeding size (mm)	Daily capacity(t)	power (kw)	Rotation speed (rpm)
1100	1100	1780	30	10	4P5.5	17-19
1200	1200	1780	30	15	6P7.5	17-19
1400	1400	1880	30	25	6P15	16-18
1500	1500	1880	30	35	6P22	19-21
1600	1600	1880	30	45	6P30	19-21
