1.9-76t/h Processing capacity:
9-285m³ Cylinder capacity:

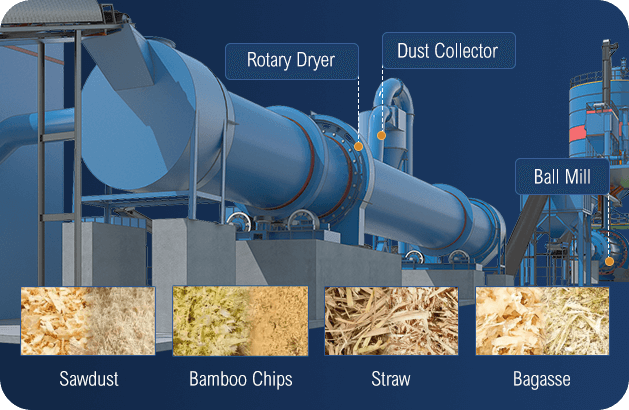

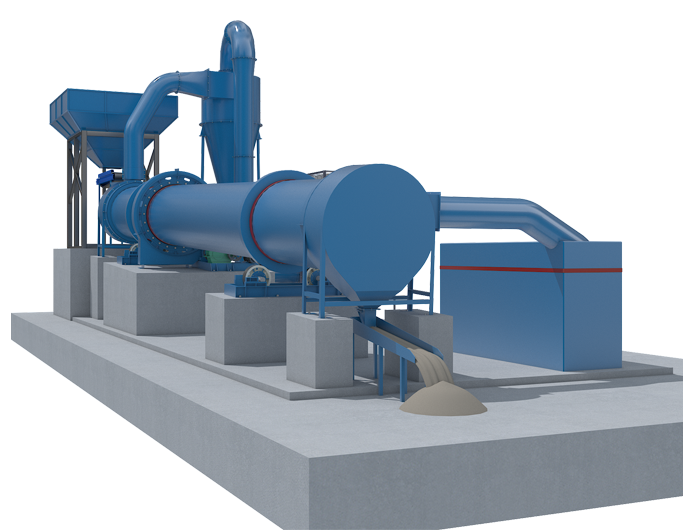

The bagasse dryer is used for drying sugar cane bagasse to make pellet fuels or powder feeds. Bagasse dryer mainly consists of a heater, feeding machine, rotary drum, discharging machine, induced draft fan, unloading feeder, cyclone, and power distribution cabinet form.
The output humidity can be controlled to 0.5-1% or below according to your requirements. If you need the sand dryer, please feel free to contact us. We will give you the best solution!
High thermal efficiency: The thermal efficiency is 80% to 90%. The new internal structure strengthens heat conduction of dispersed materials, and eliminates the sticking phenomenon of the inner wall of the cylinder.
01Stable drying quality: Since the heating mode is easy to control, the temperature inside the cylinder and the heat transfer rate of the partition wall can be kept relatively stable.
02Long parts life, not easy to wear: The cylinder of the dryer is made of steel material, which has the characteristics of high hardness and high toughness.
03Simple operation, environmental protection and energy saving: The dryer system has good sealing performance, and is equipped with a complete dust removal device, with little dust spillage and a good operating environment.
04
FTM Sugarcane Bagasse Dryer Machine has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.
| Spec./m | Shell Cubage | Capacity(t/h) | Installation(%) | Highest Inlet Air Temperature(℃) |
Main Motor |
| Ø1.2×8 | 9 | 1.9-2.4 | 3-5 | 700-800 | 7.5 |
| Ø1.2 ×10 | 11.3 | 2.4-3 | 3-5 | 700-800 | 7.5 |
| Ø 1.5×12 | 21.2 | 4.5-5.7 | 3-5 | 700-800 | 15 |
| Ø 1.5×14 | 24.7 | 5.3-6.6 | 3-5 | 700-800 | 15 |
| Ø1.5×15 | 26.5 | 5.7-7.1 | 3-5 | 700-800 | 15 |
| Ø 1.8×12 | 30.5 | 6.5-8.1 | 3-5 | 700-800 | 18.5 |
| Ø 1.8×14 | 35.6 | 7.6-9.5 | 3-5 | 700-800 | 18.5 |
| Ø 2.2×12 | 45.6 | 9.7-12.2 | 3-5 | 700-800 | 22 |
| Ø 2.2×14 | 53.2 | 11.4-14.2 | 3-5 | 700-800 | 22 |
| Ø 2.2×16 | 60.8 | 13-16.2 | 3-5 | 700-800 | 22 |
| Ø 2.4×14 | 63.3 | 13.5-16.9 | 3-5 | 700-800 | 37 |
| Ø 2.4×18 | 81.4 | 17.4-21.7 | 3-5 | 700-800 | 37 |
| Ø 2.4×20 | 90.4 | 19.3-24.1 | 3-5 | 700-800 | 45 |
| Ø 2.4×22 | 99.5 | 21.2-26.5 | 3-5 | 700-800 | 45 |
| Ø 2.6×24 | 127.4 | 27.2-34 | 3-5 | 700-800 | 55 |
| Ø 3×20 | 141.3 | 30.1-37.7 | 3-5 | 700-800 | 75 |
| Ø 3×25 | 176.6 | 37.7-47.1 | 3-5 | 700-800 | 75 |
| Ø 3.2×25 | 201 | 42.9-53.6 | 3-5 | 700-800 | 90 |
| Ø 3.6×28 | 285 | 60.8-76 | 3-5 | 700-800 | 160 |
| Shell diameter × shell Length | Inside diameter of outer shell （mm） |
Inside diameter of inner shell （mm） |
Shell Length （m） |
Shell cubage （m³） |
Shell obliquity | Lifting blade form | Highest inlet air temperature （℃） |
Dimensions （m） |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.
Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.
Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
