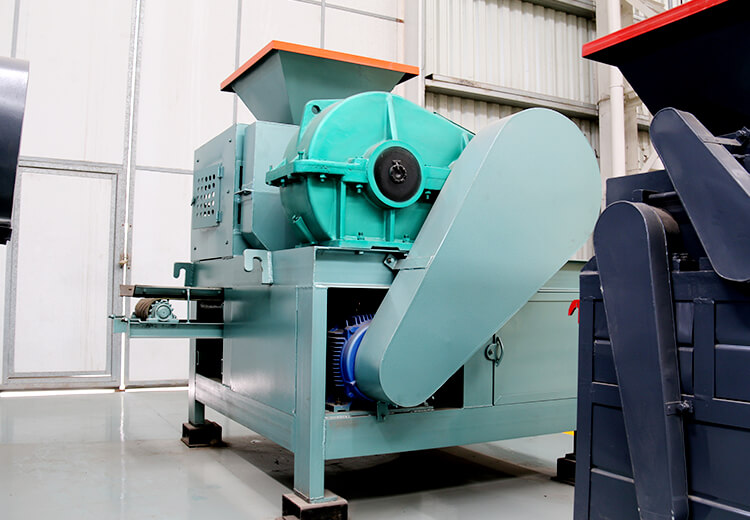

The powder briquette machine mainly adopts the dry pressure ball, and no water is added during the whole ball pressing process, and the aluminum chips, magnesium chips, activated carbon, alumina, quicklime and the like are mainly pressed and formed. The pressure is also one of the main features of the dry powder briquette machine.
Dry powder briquette machine can be used to press various powders and wastes such as iron powder, aluminum powder, iron oxide scale, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon and coke. It mainly used in the refractory, power plant, metallurgy, chemical, energy, transportation, heating, and other industries.
The powder briquette machine roll skin can be replaced after wear. The briquette machine does not need to add a binder when the ball is pressed, and the material can be directly pressed and formed. Depending on the region, the shape of the molding ball is different, and the shape of the ball formed by the customer in the dry powder ball press is also different. Common molding shapes are square shape, ball egg type, ellipse type, goose egg type, pillow type and the like. The user can customize the specific size and the special shape of the ball according to their own needs.
Model | Roller Diameter (mm) |
Capacity(t/h) | Power(kw) | Reducer |
FTMQ290 | 290 | 1-2.5 | 5.5-7.5 | 350 |
FTMQ360 | 360 | 3-5 | 7.5-11 | 350 |
Heavy FTMQ360 | 360 | 3-5 | 7.5-11 | 400 |
FTMQ430 | 430 | 5-8 | 15 | 400 |
Heavy FTMQ430 | 430 | 5-8 | 15 | 500 |
FTMQ500 | 500 | 8-11 | 30 | 650 |
FTMQ650 | 650 | 10-15 | 37-45 | 750 |
FTMQ750 | 750 | 20-25 | 45 | 750 |
FTMQ850 | 850 | 20-28 | 55 | 850 |
FTMQ1000 | 1000 | 25-35 | 90 | 1000 |
Wide range of applications;
Simple maintenance, low loss, and high economic efficiency;
Complete supporting equipment, one-stop solution;
Worry-free service, 24-hour full technical support.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.
Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.
Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
