Brief Introduction

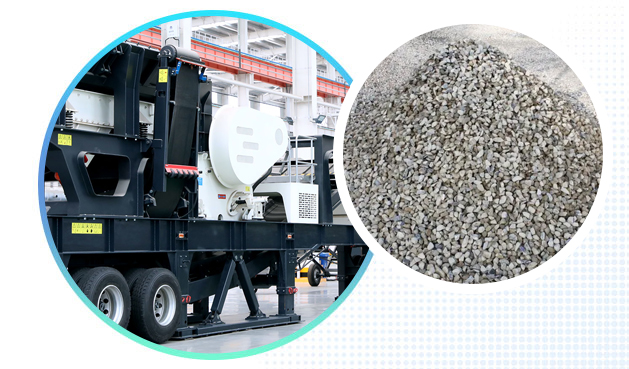

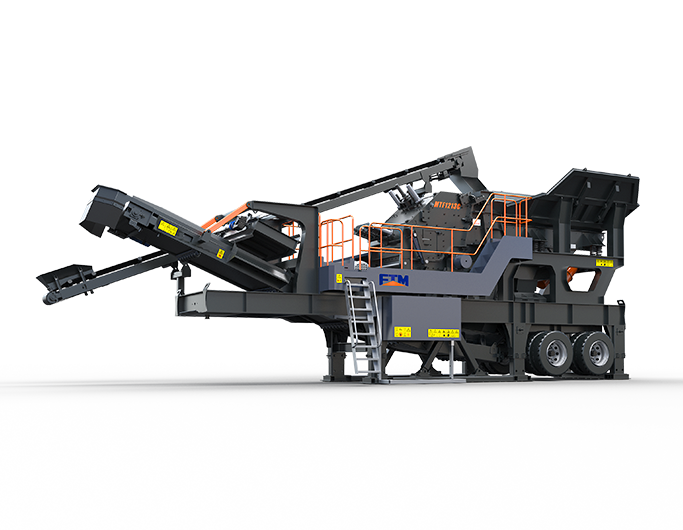

Mobile Stone crushers include crawler-type mobile crusher and wheeled mobile crusher. The mobile crushing equipment is a set of movable crushing and screening equipment. According to the crushing and screening requirements, there are different combinations to meet the different needs of customers, such as mobile jaw crusher, mobile cone crusher, mobile impact crusher etc. The mobile Stone crusher eliminates the cumbersome steel frame structure and foundation construction during the crushing, saving the construction time and cost of the foundation. The mobile stone crusher can directly enter the crushing site for on-site crushing, which reduces the transportation cost of materials, and also avoids the dust pollution generated during transportation.

Working Principle

The mobile stone crusher is the matching equipment. It can provide a variety of individualized unit configurations according to the different requirements of customers and the actual situation. It can be operated in a single machine or in multiple units, thus achieving a combination of functions such as single unit crushing, multi-unit combined classification crushing, and screening. The mobile stone crusher can be used in mines, coal mines, garbage and construction waste recycling, earth and stone works, urban infrastructure, roads or construction sites.

Learn More

Advantages

The set performance is strong, the combination is reasonable and compact, and the requirements for the work site are extremely low.
01

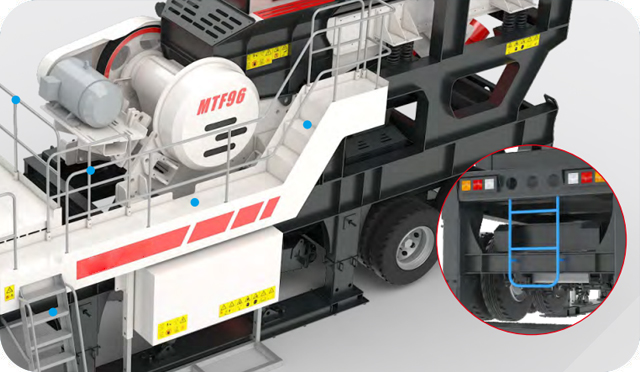

The vehicle has a compact structure, a small turning radius, and is convenient and quick to convert, enter and exit the site.
02
It can directly enter the raw material site to work, thus saving the transportation cost of raw materials.
03
It can be equipped with generator sets to meet the normal operation requirements of complex situations such as no electricity or power failure, reducing losses.
04

Cases and Price

Our Mobile Stone Crusher has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.Get Quote

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model	FTM938F1210	FTM938FW1214	FTM1149F1315	FTM1349HD1110	FTM1349HD1315
Transportation Length（mm）	12000	12000	13900	15450	15450
Transportation Width（mm）	2550	2550	2900	2950	2950
Transportation Height（mm）	3900	3900	4450	4500	4500
Maximum Length（mm）	12500	12500	13900	15450	15450
Maximum Width（mm）	3250	3260	3250	3250	3250
Maximum Height（mm）	5100	5200	5200	5200	5200
Weight（t）	39	44	54	62	62
Crusher Model	PF-1210	PF-1214	PF-1315	HD1110	HD1315
The Maximum Feeding Size（mm）	350	350	500	400	700
Production Capacity（t/h）	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional) （kw）	320	320	400	320	440
Iron Separator (Optional)（kw）	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model	FTM938HD80	FTM1149HD98	FTM1349HD110	FTM1349HD125
Transportation Length(mm)	12600	13500	14500	15200
Transportation Width(mm)	2600	2700	2800	2900
Transportation Height(mm)	3870	4200	4450	4500
Maximum Length(mm)	12500	14000	16100	16700
Maximum Width(mm)	4100	4500	5100	5100
Maximum Height(mm)	4100	4900	5000	5300
Weight(t)	39	57	55	65
Tire Configuration	Dual-axial	Dual-axial	Dual-axial	Dual-axial
Jaw Crusher	HD80	HD98	HD110	HD125
Maximum Feeding Size(mm)	500	550	660	800
Discharge Opening Size(mm)	50-150	75-175	100-200	125-225
Capacity(t/h)	85-275	110-350	215-510	280-650
Vibrating Model	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	B800×8.5M	B1000×9.5M	B1000×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3M	B650×3.5M	B650×4M	B650×4M
Genset(Optional) (kw)	200	250	270	400
Iron Separator (Optional)	RCYD(C)-8	RCYD(C)-10	RCYD(C)-10	RCYD(C)-12

Why Choose FTM

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.

Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
