70–585 t/h Capacity:
200–530 r/min Rotate speed:

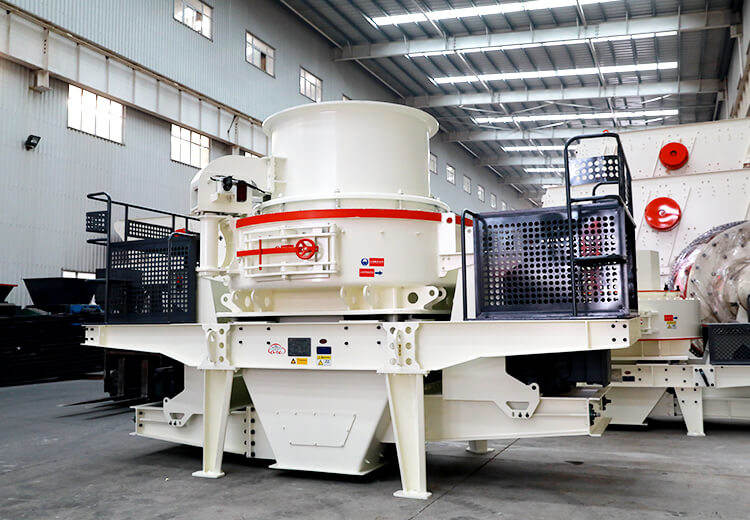

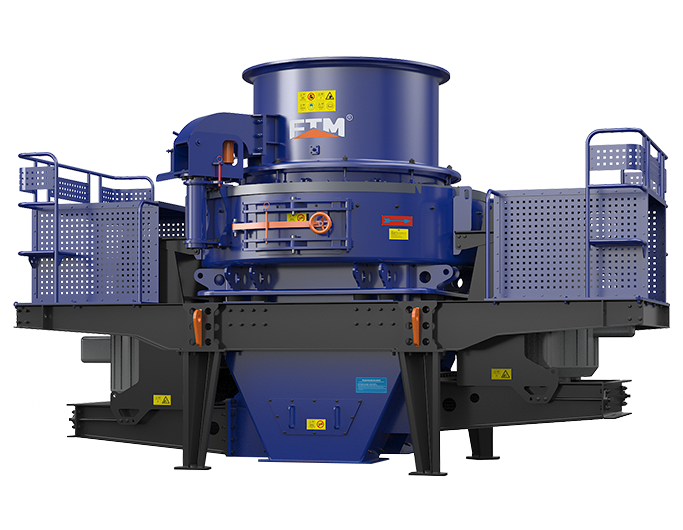

HVI impact sand maker, also known as HVI impact sand making and shaping machine, FTM company introduces German advanced technology, integrates various crushing modes, and innovates and develops the new 2018 equipment. It is new high-efficiency sand making and shaping equipment with many patented technologies.

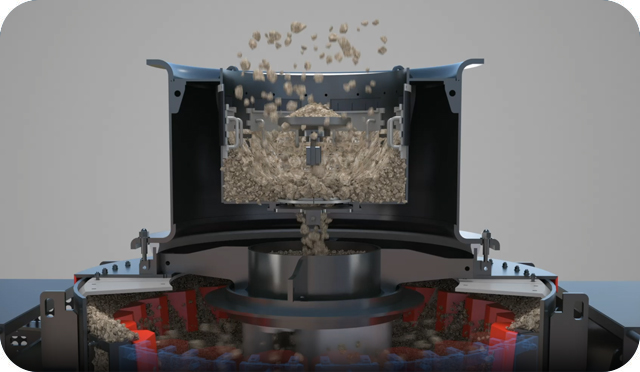

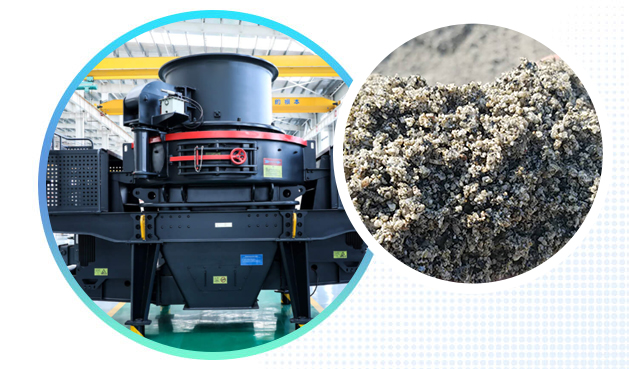

The impeller structure adopts a unique deep cavity four-port design to increase material throughput by more than 30% and special bulk tray design to convert quickly feeding and waterfall feeding, effectively reducing downtime, adjustment time, and improving work efficiency. The final products have cube form and the shaping effect is good, the iron pollution is extremely small, and the size of the grain can be adjusted according to actual needs.
The upper and lower adjustable perimeter guards are used to make the equipment work under the perimeter of the equipment during the operation, which improves the utilization rate and prolongs the service life.
01Combined throwing head, only need to replace the worn part, can reduce the cost of use by 30%.
02Lubrication method can be selected; the modular design of thin oil type and grease type of bearing chamber can realize the whole interchangeability.
03There are multiple ways of feeding from the center and the surrounding. The startup and operation of the equipment are on the automation control panel, which enhances production safety.
04
Our HVI Sand Making Machine has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.Get Quote
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.
| Model | Hard material | Soft material | Sand Shaping | Sand Making | Motor Power（kw） |
| Max.Feeding Size （mm） | Throughput（t/h） | ||||
| HVI 0815 | <30 | <35 | 50-140 | 90-230 | 2×75 |
| HVI 0818 | <30 | <35 | 60-190 | 110-283 | 2×90 |
| HVI 0922 | <35 | <40 | 70-210 | 150-330 | 2×110 |
| HVI 0926 | <35 | <40 | 85-240 | 170-380 | 2×132 |
| HVI 1032 | <40 | <45 | 130-278 | 180-400 | 2×160 |
| HVI 1040 | <40 | <45 | 180-284 | 250-440 | 2×200 |
| HVI 1263 | <50 | <55 | 320-498 | 370-585 | 2×315 |

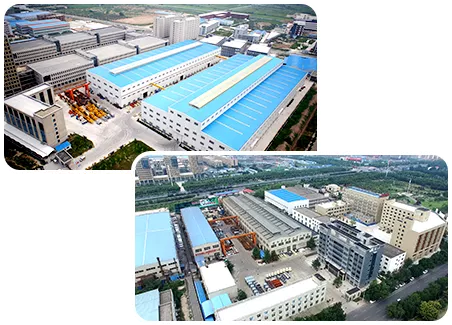

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

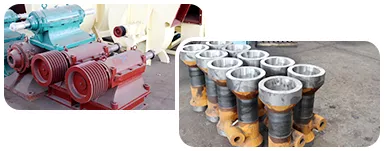

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.
Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
