Brief Introduction

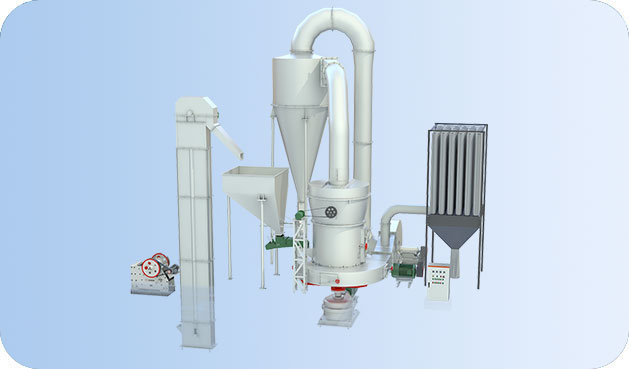

High-pressure grinding mill is mainly composed of main engine, blower, ultra-fineness analysis machine, finished cyclone powder collector, bag filter and connecting duct pipe, etc. According to the needs of users, it can be equipped with auxiliary equipment such as bucket elevator, storage bin, electric control cabinet, electromagnetic vibrating feeder, and jaw crusher.

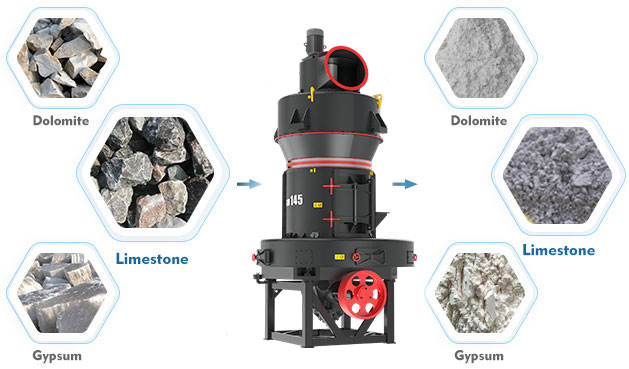

High-pressure grinding mill is suitable for various fields, such as calcium carbonate pulverization processing, gypsum powder processing, power plant desulfurization, non-metallic mineral powder production, coal powder preparation, etc. The particle size of the micro-grinding product can be arbitrarily adjusted within the range of 80-325 mesh, and some materials can be as high as 600 mesh.

Working Principle

In the grinding chamber, the grinding roller assembly is suspended on the grinding roller hanger through the cross-arm shaft and the grinding roller hanger is fixedly coupled with the main shaft and the blade holder. The pressure spring is tightly pressed by the tension rod in the grinding roller bearing chamber. On the outer end of the cantilever, with the cross-arm shaft as the support point, the spring roller presses the grinding roller tightly on the inner surface of the grinding ring. When the motor rotates through the transmission device, the blade mounted on the blade holder rotates synchronously with the grinding roller, and the grinding roller rotates around itself while rolling on the inner surface of the grinding ring. The analyzer drives the analyzer impeller to rotate through the motor drive, and the speed adjustment of the analyzer determines the fineness.

Learn More

Advantages

In the case of the same yield and fineness, the price of micro powder grinding mill is only one-eighth of the airflow mill, the scope of application is also larger, and the system energy consumption is only one-third of the airflow mill.
01
Compared with other similar mills, the micro powder grinding mill increases the crushing pressure of the material by 800-1200kg under the action of high-pressure spring.
02
The feeding size is large, and the one-time average particle size can reach 6.5μm.
03

Cases and Price

Our High-Pressure Grinding Mill has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.Get Quote

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Technical Data

Parameter Model	Micropowder93	Micropowder92	Micropowder87	Micropowder76	Micropowder66
Feeding size(mm)	≤25	≤25	≤20	≤20	≤15
Size of finished product(mm)	0.125-0.010	0.125-0.033	0.125-0.010	0.125-0.033	0.125-0.010
Shift output of different material fineness(t)	0.8-12	0.6-10	0.4-8	0.3-6	0.2-4
Rotate speed of pulverizing ring(r/min)	140	148	160	170	180
Diameter of pulverizing ring(mm)	1006	973	907.5	850	725
Diameter of pulverizing roller(mm)	300	300	270	250	210
Height of pulverizing roller(mm)	160	160	150	150	150
Main Motor(kw)	Y225M-8-30	Y225M-8-22	Y225M-8-22	Y225S-8-18.5	Y225M-8-15
Fan Motor	Y180M-2-22	Y180L-4-22	Y160L-4-18.5	Y160L-4-15	Y160L-4-11
Analyzer Motor	YCT180M-4A-4	YCT180M-4A-4	YCT180M-4A-4	YCT160-4B-3	YCT160-4B-3

Why Choose FTM

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.

Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.

If you have any doubts about products, Please contact us, we will reply to you within 24 hours/provide you with the latest quotes.
