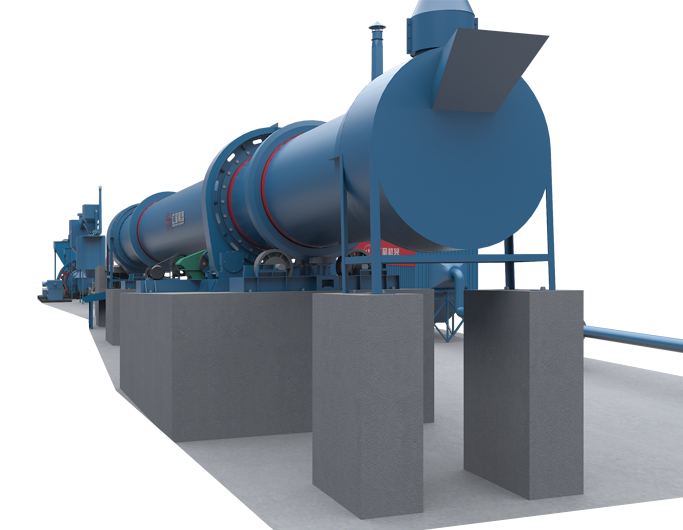

Crops Straw Dryer Machine-Fote Machinery

Advantages

High thermal efficiency: The thermal efficiency is 80% to 90%. The new internal structure strengthens heat conduction of dispersed materials, and eliminates the sticking phenomenon of the inner wall of the cylinder.
01
Stable drying quality: Since the heating mode is easy to control, the temperature inside the cylinder and the heat transfer rate of the partition wall can be kept relatively stable.
02
Long parts life, not easy to wear: The cylinder of the dryer is made of steel material, which has the characteristics of high hardness and high toughness.
03
Simple operation, environmental protection and energy saving: The dryer system has good sealing performance, and is equipped with a complete dust removal device, with little dust spillage and a good operating environment.
04

Cases and Price

FTM Crops Straw Dryer Machine has been exported to over 160 countries, such as, Pakistan, Egypt, Indonesia, Malaysia, Ethiopia, Nigeria, South Africa, etc. Furthermore, we provide 100% factory price and maximum discount for you. Additionally, if you are new in this industry, we will provide professional suggestions and solutions for you.

Service Guarantees

01
Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
02
Expert design as your order and requirement, with all-around solutions to your problems.
03
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
04
Regular inspection and return visit, and solve your after-sale problems in time.

Spec./m	Shell Cubage	Capacity(t/h)	Installation(%)	Highest Inlet Air Temperature(℃)	Main Motor
Ø1.2×8	9	1.9-2.4	3-5	700-800	7.5
Ø1.2 ×10	11.3	2.4-3	3-5	700-800	7.5
Ø 1.5×12	21.2	4.5-5.7	3-5	700-800	15
Ø 1.5×14	24.7	5.3-6.6	3-5	700-800	15
Ø1.5×15	26.5	5.7-7.1	3-5	700-800	15
Ø 1.8×12	30.5	6.5-8.1	3-5	700-800	18.5
Ø 1.8×14	35.6	7.6-9.5	3-5	700-800	18.5
Ø 2.2×12	45.6	9.7-12.2	3-5	700-800	22
Ø 2.2×14	53.2	11.4-14.2	3-5	700-800	22
Ø 2.2×16	60.8	13-16.2	3-5	700-800	22
Ø 2.4×14	63.3	13.5-16.9	3-5	700-800	37
Ø 2.4×18	81.4	17.4-21.7	3-5	700-800	37
Ø 2.4×20	90.4	19.3-24.1	3-5	700-800	45
Ø 2.4×22	99.5	21.2-26.5	3-5	700-800	45
Ø 2.6×24	127.4	27.2-34	3-5	700-800	55
Ø 3×20	141.3	30.1-37.7	3-5	700-800	75
Ø 3×25	176.6	37.7-47.1	3-5	700-800	75
Ø 3.2×25	201	42.9-53.6	3-5	700-800	90
Ø 3.6×28	285	60.8-76	3-5	700-800	160

Shell diameter × shell Length	Inside diameter of outer shell （mm）	Inside diameter of inner shell （mm）	Shell Length （m）	Shell cubage （m³）	Shell obliquity	Lifting blade form	Highest inlet air temperature （℃）	Dimensions （m）
Φ1.5×15m	1500	500	15	20.27	3-5%	Lifting form	850	16.2×2.7×2.7
Φ1.5×17m			17	22.97				18.2×2.7×2.7
Φ1.5×19m			19	25.68				20.0×2.9×2.9
Φ1.8×21m	1800	650	21	35.91	3-5%	Lifting form	850	22.5×2.7×2.7
Φ1.8×23m			23	39.33				24.5×2.9×2.9
Φ1.8×25m			25	42.75				26.5×2.9×2.9
Φ2.2×21m	2200	800	21	58.10	3-5%	Lifting form	850	----
Φ2.2×23m			23	63.61
Φ2.2×25m			25	69.15

Why Choose FTM

Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.

Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.

Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
