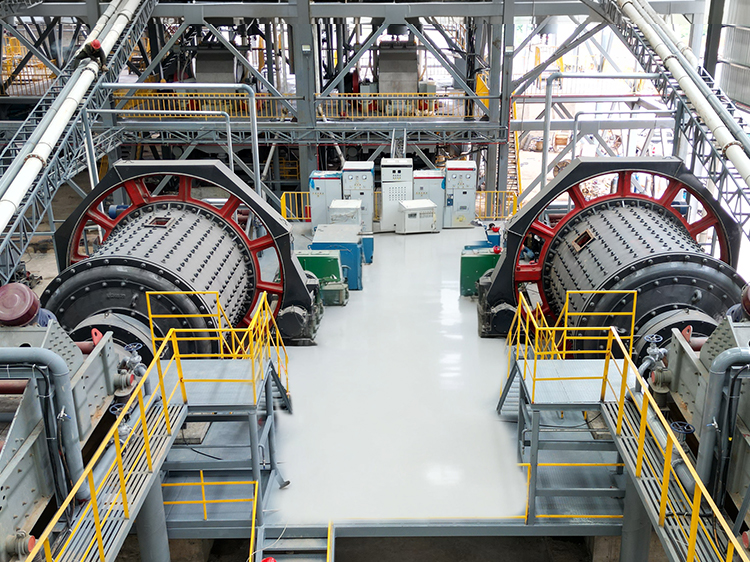

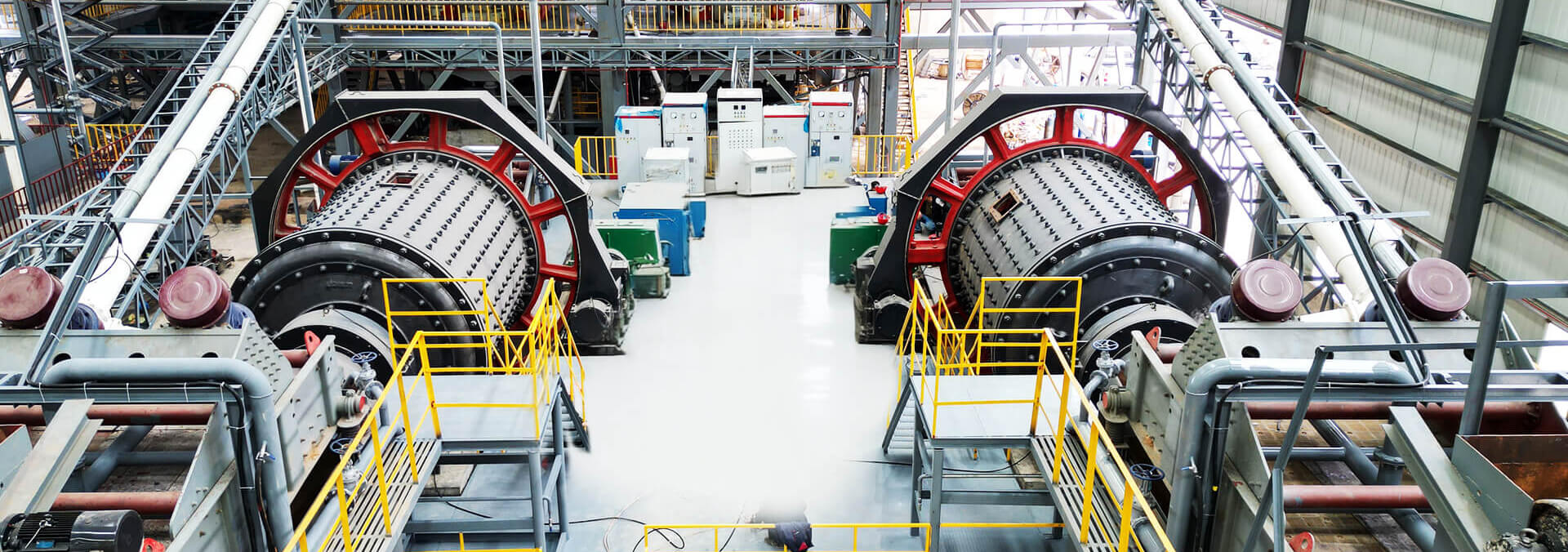

Ball mills is a key equipment for grinding materials sales@sinoftm.com
Production capacity
Feeding size
Material handling effect
gold ore
copper ore
limestone
manganese
chrome

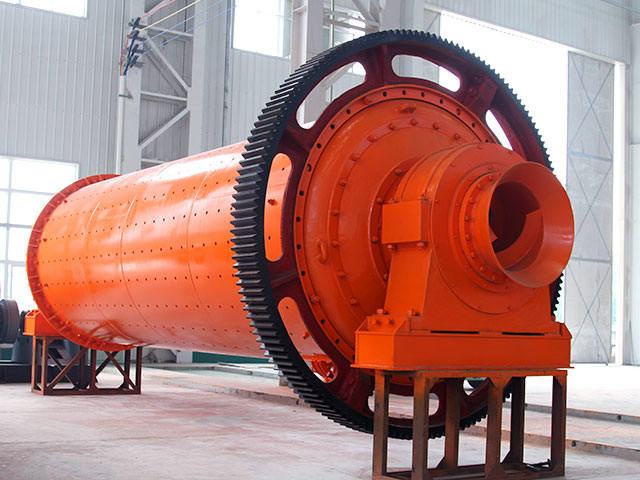

Ball mills are widely used in cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics. Dry or wet grinding of various ores and other materials.
Energy-saving: fully hydraulic operation, easy to use
and automate.High
grinding efficiency:High quality of the lining and
grinding body .Good operating conditions:stable operation,
less dust.
FTM company's advanced technology of ball mill machine allows optimizing production according to demand, which brings us doubles production.
The ball mill process is situated in northern Mexico, where there is the copper on a large scale. Our specialists and engineers design a 3t/h ball mill process for customers.
Capacity: 3t/h
Material: Copper ore
Location: Northern Mexico
We have co-operated with the FTM company for five years. The ball mill is used for iron ore milling, which is convenient to use and easy to maintain, the machine has high processing precision.
The company aimed to increase recovery, and reduce power consumption. Choosing a more reliable and efficient machine would enable the entire process to be more efficient.
Capacity: 22t/h
Material: Iron ore
Location: Balochistan, Pakistan
FTM company's advanced technology of ball mill machine allows optimizing production according to demand, which brings us doubles production.
The gold belt in the southern shore of Lake Victoria is a large gold mining area in Tanzania. Now it has been working for a long time.
Capacity: 60t/h
Material: Gold ore
Location: South Lake Victoria, Tanzania
Professional mining machinery manufacturer with over 40 years of experience.
Ⅰ
24/7 online service
Ⅱ
Customize the solution for free
Ⅲ
Reliable and fast accessory services
Ⅳ
Round-the-clock tech support
The favorable price to provide you with quality services
As the advanced manufacturer and exporter in china, our ball mills are factory-direct sold, which offer you premium quality and better service.
Company strength
Brand:FTM
Set up:1982
Current Headcount:2,300+
Covering area:500,000m²
Factory area:360,000m²
Product types
Crushing equipment
Beneficiation equipment
Building materials equipment
Grinding milling equipment
Business types
Manufacturer
Supplier
Exporter
Hot sale in countries
Southeast Asia
Africa
Middle East
South America
East Europe
| Model | Shell rotation
speed （r/min） |
Ball load (t) |
Feeding size
(mm) |
Discharging size
(mm) |
Capacity (t/h) |
Motor power (kw) |
Total weight
(t) |
| Ф900×1800 | 36-38 | 1.5 | <20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |
| Ф900×3000 | 36 | 2.7 | <20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| Ф1200×2400 | 36 | 3 | <25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Ф1200×3000 | 36 | 3.5 | <25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Ф1200×4500 | 32.4 | 5 | <25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |
| Ф1500×3000 | 29.7 | 7.5 | <25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Ф1500×4500 | 27 | 11 | <25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Ф1500×5700 | 28 | 12 | <25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1830×3000 | 25.4 | 11 | <25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | 25.4 | 15 | <25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | 24.1 | 21 | <25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | <25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | <25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| Ф2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Ф2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| Ф2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Model |
Feeding capacity （t/time） |
Shell rotation speed （r/min） |
Reference motor （kw） |
Liner material |
| 600×700 | 0.05 | 50 | 2.2 | Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials） |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 | |
| 3200×4600 | 15 | 13.5 | 75 |
| Model |
Shell Specifications （mm）
|
Shell rotation speed （r/min） |
Feeding size (mm) |
Discharging size (mm) |
Processing capacity (t/h) |
Power (kw) |
Total weight (t) |
|
| Diameter | Length | |||||||
| MBS0918 | 900 | 1800 | 36-38 | ≤25 | 0.833-0.147 | 0.62-3.2 | 18.5 |
5.9 |
| MBS0924 | 900 | 2400 | 36 | ≤25 | 0.833-0.147 | 0.81-4.3 | 22 | 6.7 |
| MBS1224 | 1200 | 2400 | 36 | ≤25 | 0.833-0.147 | 1.1-4.9 | 30 | 13.9 |
| MBS1530 | 1500 | 3000 | 29.7 | ≤25 | 0.833-0.147 | 2.4-7.5 | 75 | 19.8 |
| MBS1830 | 1830 | 3000 | 25.4 | ≤25 | 0.833-0.147 | 4.8-11.6 | 130 | 34.9 |
| MBS2130 | 2100 | 3000 | 23.7 | ≤25 | 0.833-0.147 | 14-35 | 155 | 46.5 |
| MBS2136 | 2100 | 3600 | 23.7 | ≤25 | 0.833-0.147 | 19-43 | 180 | 48.7 |
| MBS2430 | 2400 | 3000 | 21 | ≤50 | 0.833-0.147 | 25-65 | 245 | 59.7 |
| MBS2736 | 2700 | 3600 | 20.7 | ≤50 | 0.833-0.147 | 32-86 | 380 | 92.5 |
| MBS2740 | 2700 | 4000 | 20.7 | ≤50 | 0.833-0.147 | 32-92 | 400 | 95 |
| MBS3245 | 3200 | 4500 | 18 | ≤50 | 0.833-0.147 | 64-180 | 630 | 149 |
